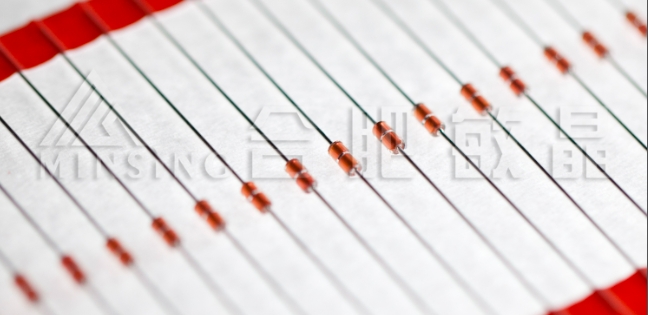

How Does an NTC Thermistor Work? A Comprehensive Guide to Its Principles and Applications

Despite its small size, the NTC thermistor is found in almost all temperature-related devices in our lives. Air conditioners, refrigerators, rice cookers, cars, computers... it's almost everywhere. So, how exactly does an NTC thermistor work?

I. What is an NTC Thermistor?

A thermistor, as the name suggests, is a resistor that is sensitive to temperature changes. Its resistance value changes with temperature, and based on this characteristic, thermistors are widely used in temperature detection, temperature compensation, and current protection scenarios.
Thermistors are divided into two types:
NTC (Negative Temperature Coefficient) thermistors: resistance decreases as temperature increases;
PTC (Positive Temperature Coefficient) thermistors: resistance increases as temperature increases.
The NTC thermistor is the one we use most frequently in our daily lives.




II. How Does a Thermistor Work?

When it comes to the working principle, it's actually very simple and intuitive:
1. Material Properties Determine Performance
Thermistors are usually made of special semiconductor materials, and the electrical activity of these materials is closely related to temperature.
NTC thermistor: As the temperature rises, more "free electrons" are generated inside the material, and the electron movement becomes more active, resulting in a decrease in resistance.
PTC thermistor: As the temperature rises, the internal crystal structure changes, and the electron flow is hindered, resulting in an increase in resistance.
2. Role in Circuits
When a thermistor is placed in a circuit, its resistance change directly affects the voltage, current, or signal strength in the circuit, thereby achieving temperature "perception" and feedback.
For example:
Temperature sensing: By reading the resistance change of the thermistor, the device can "know" the external temperature change;
Surge suppression: For example, when an appliance starts, the current is very large. The thermistor initially provides a high resistance to limit the current, and when the current stabilizes, the resistance decreases, allowing the current to pass normally.


III. Application Scenarios of Thermistors

Although the working principle of thermistors is simple, their application scenarios are everywhere, mainly in the following fields:
Household appliances: temperature detection, temperature compensation, current surge suppression
Automotive electronics: battery pack temperature monitoring, engine compartment temperature feedback
Consumer electronics: CPU cooling in laptops, overheat protection for mobile phone batteries
Medical equipment: internal temperature control of equipment to prevent component failure due to overheating
Industrial equipment: temperature detection of motors and transformers to prevent equipment damage due to long-term overheating


IV. Why Choosing a Quality Thermistor Manufacturer is Important

Although thermistors are small, they play a crucial role. If the quality is not up to standard, the temperature control of the equipment may be inaccurate, and in severe cases, it may even lead to equipment damage.
Among the many thermistor manufacturers, MinSing is undoubtedly a reliable choice. Founded in 1994, MinSing is a national high-tech enterprise specializing in the research and development and manufacturing of thermistors and temperature sensors. It offers high quality, professional service, and high cost-effectiveness, all of which can be met by MinSing.
