Going deep behind the NTC thermistor chip: how a small chip achieves precise temperature control

In the field of industrial electronics, there is a device that is small but ubiquitous. It does not emit light or sound, but can always sense the temperature and protect the safety of the system-this is the NTC thermistor chip. How did this little chip come about? Why is it so important? Today we don't talk about complicated terms, starting from materials and manufacturing, we will take you to understand the other side of NTC thermistor chips.




1. Although the chip is small, the process is not simple

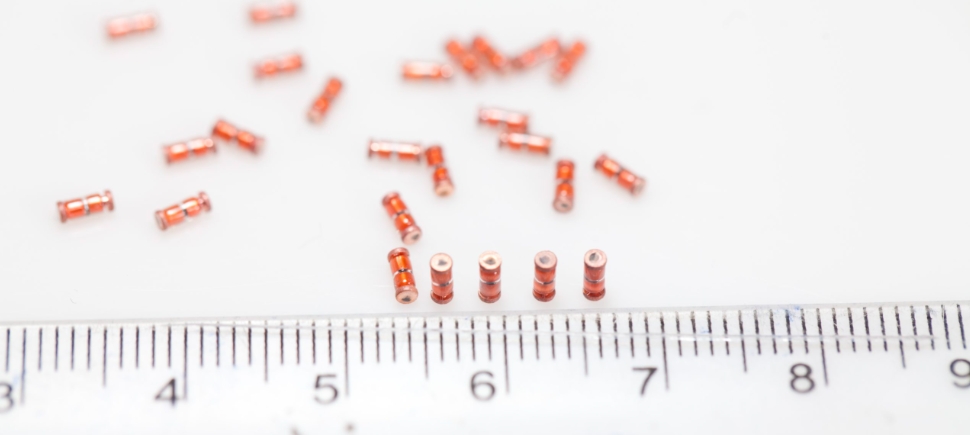

Although the appearance of the NTC thermistor is only a few millimeters square, the process behind it involves material science, ceramic engineering, electrode technology and precision packaging.

The manufacturing process of Minsing NTC chips is briefly summarized as follows:
Material ratio: First of all, metal oxides with excellent stability are selected, such as manganese oxide, nickel oxide, cobalt oxide, etc. These are the "skeleton" of NTC thermistors. Different proportions of the formula determine the final chip temperature-resistance curve.

High temperature sintering: The raw materials are sintered at a high temperature above 1200 °C to form a dense ceramic body. This step is the key to making the material have NTC characteristics, and it is also the core link that determines the reliability of the chip.

Electrode coating: At both ends of the sintered chip, Minsing adopts metal coating technology with excellent corrosion resistance to replace traditional silver electrodes, which greatly improves the environmental resistance and service life of the product.

Cutting & Inspection: The sintered ceramic body is precisely cut into chips of different sizes, and undergoes multiple electrical performance, thermal response and reliability tests before leaving the factory to ensure batch stability.

NTC thermistors seem simple, but they are actually the result of multiple high-precision processes, and each link affects its performance in user equipment.


2. Why is the NTC chip a temperature-controlled brain

In many smart devices, NTC thermistor is not just an ordinary part, it is like a perceptual brain, providing basic data for device judgment and decision-making.

Accurate temperature measurement, no guessing
Different from traditional mechanical temperature control components, NTC thermistors reflect temperature through changes in resistance values. This approach is more accurate and responsive. Taking Minsing's NTC thermistor as an example, its temperature response error can be controlled at ± 1%. In application scenarios with frequent temperature fluctuations (such as new energy vehicle battery packs), accuracy is crucial.

Not afraid of high temperature, not afraid of corrosion
Many chips are prone to performance attenuation in high temperature or high humidity environments, and MinsingNTC thermistors are specially designed for complex environments. They can not only work stably below 200 °C for a long time, but also have excellent corrosion and oxidation resistance. It can also remain stable in salty and oily environments.


3. The application scenarios of NTC thermistors are far wider than you think

"Thermometers" in Industrial Equipment
In the frequency converter, motor drive, and power supply module, the NTC chip monitors temperature changes to ensure that the equipment is not overheated or downtime, and prolongs the service life.

The "heart-protecting housekeeper" of new energy vehicles
Whether it is a power battery, a car charger, or an IGBT module, the temperature is directly related to safety and efficiency. NTC chip real-time monitoring to prevent thermal runaway.

"Temperature Balancer" of Energy Storage System
In large energy storage cabinets, the chip helps the system adjust the temperature of the battery cells, reducing energy loss, while protecting the battery system from overheating.

"Smart Switch" in Consumer Home Appliances
In water heaters, induction cookers, and air conditioners, NTC chips control the entire process of heating and cooling, providing users with a safer and more energy-saving experience.


4. Why more and more companies choose Minsing

Choosing NTC thermistors is, in the final analysis, choosing stability, consistency and reliability. Minsing NTC thermistors have a good reputation among customers in many industries. The core reasons include:

Long-term technology accumulation: with more than 30 years of professional manufacturing experience;
Independent coating process: replace silver electrodes, prevent electromigration, and improve reliability;
High consistency control: each batch of chip deviation control is strict, suitable for large-scale applications;

Perfect customization service: support individual needs of different sizes and resistance temperature curves.
NTC thermistor chip is not a new technology, but it has always been an indispensable part of modern intelligent temperature control systems. Professional manufacturers like Minsing are providing "visible temperature guarantee" for more and more industries through stable quality and solid technology. If you need to know more product parameters, or apply for sample testing, please contact the Minsing technical team to tailor your temperature control solution.
