Intelligent seat heating, NTC thermistor is the key temperature control expert behind

With the continuous upgrading of car comfort configuration, seat heating has become the standard configuration or even benchmark of many models. Especially in cold winter, seat heating not only brings a warm experience to drivers and passengers, but also effectively relieves fatigue and improves ride comfort. Behind this "warm technology", there is an invisible hero-NTC thermistor, which is the core sensing element for the seat heating system to achieve precise temperature control and safety protection.




How Smart Seat Heating Systems Work

Modern car seat heating system is mainly composed of electric heating wire, control module and temperature sensing unit. When the heating function is turned on, the electric heating wire is energized to generate heat, and the heat is transmitted to the human body through the seat filler, increasing the surface temperature of the seat.

At the same time, the built-in NTC thermistor of the system monitors the working temperature of the electric heating wire in real time, and transmits the temperature data to the control module. The control system then automatically adjusts the heating power according to the preset temperature range or user-set value, so as to realize a complete "perception-feedback-adjustment" closed-loop temperature control system. Such a design not only improves the accuracy and response speed of temperature control, but also greatly enhances the safety and energy efficiency management capabilities of the system.


Three Key Functions of NTC Thermistor in Seat Heating

1. Accurate temperature measurement and dynamic adjustment

The NTC thermistor is directly installed near the electric heating wire to monitor the temperature change in real time. The system uses this data to compare with the target temperature, and adjusts the current in real time through algorithms (such as PID control) to realize intelligent adjustment of heating power, so that the seat temperature is always kept in the ideal range (such as 30 °C ~ 45 °C), avoiding hot and cold.


2. High temperature warning and active protection

When the heating temperature rises abnormally (such as exceeding 65 °C), the NTC thermistor can quickly identify the overheating trend and activate the high temperature protection mechanism. The system can automatically reduce the power of the electric heating wire, or directly close the heating circuit to prevent safety accidents such as overheating and scalding, and provide all-round temperature safety guarantee for drivers and passengers.


3. The core guarantee of system stability

With its high sensitivity and long-term stable thermal response performance, the NTC thermistor ensures that the seat heating system maintains consistent performance during long-term operation, and can still accurately sense temperature even in complex interior environments such as humidity, vibration, and dust. Work reliably.

How to Choose the Appropriate NTC Thermistor

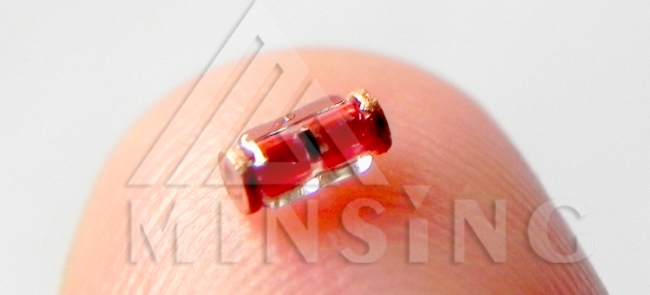

In order to meet the volume, performance and durability requirements of car seat heating, Minsing recommends the use of epoxy resin encapsulated NTC thermistors, which have the following significant advantages:

Small and easy to integrate: miniaturized design, easy to install inside the cushion layer or around the heating wire
High-precision temperature measurement: the error is as low as ± 0.5%, ± 1%, and the accuracy meets the requirements of automotive applications

Fast thermal response: the response time is as short as 0.3 seconds, which can quickly respond to temperature changes and realize real-time feedback control

High reliability materials: the packaging structure has excellent insulation, moisture-proof, and corrosion-proof capabilities, adapting to long-term operation and complex environments


Not only seat heating, but also more widely used

Minsing's NTC thermistor is not only suitable for car seat heating systems, but also widely used in: thermal management of energy storage battery packs, temperature control of car charging modules, air-conditioning outlet sensing units, steering wheel heating and rearview mirror defogging systems, etc. We can also provide non-standard customized services according to customer needs, including resistance value range, packaging structure, lead form and installation method, etc., to meet the supporting needs of different OEMs and system integrators.

A small NTC thermistor has achieved precise control and reliable operation of the intelligent seat heating system. Minsing has been focusing on the field of temperature control for more than 30 years. With mature technology and strict quality standards, Minsing provides professional and reliable temperature sensing solutions for automotive thermal management systems. In the future, we will continue to help the precise control of temperature in smart travel scenarios, so that technology can warm every trip.
