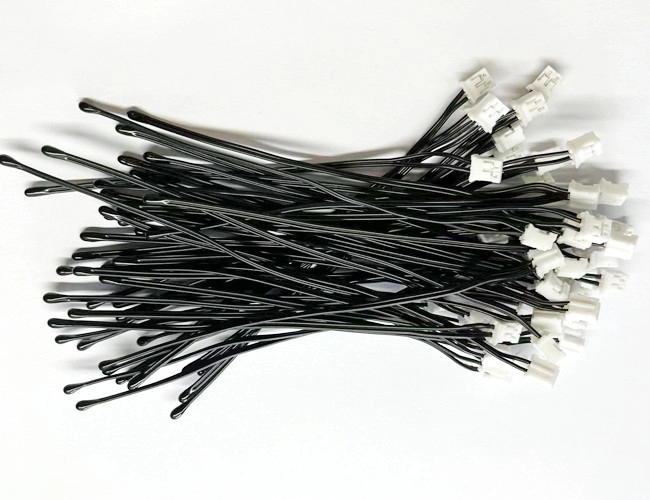

750VAC Epoxy Thermistor Temperature Sensor
Product Description
The 750VAC Epoxy Thermistor Temperature Sensor is a high-performance temperature detection device designed for accurate, stable, and rapid thermal response in a wide range of industrial and commercial applications. Built with epoxy encapsulation and a radial leaded structure, it ensures excellent insulation, durability, and resistance to environmental stress. With a response time of 5–15 seconds and a dielectric strength of 750VAC, this sensor delivers reliable temperature monitoring performance even under demanding operating conditions.
Features
Fast Response Time: Reacts quickly (5–15 seconds) to temperature variations, ensuring precise and timely temperature control.
High Dielectric Strength: 750VAC insulation capacity provides enhanced electrical safety and stability.
Wide Resistance Range: 0.5KΩ–2000KΩ, adaptable for various sensing and control systems.
Excellent Insulation: 100MΩ insulation resistance ensures dependable operation and long service life.
Flexible Lead Options: Available with PVC, PFA, or FEP insulated lead wires for different environmental requirements.
Certified Quality: Complies with IATF16949 / REACH / RoHS standards for safety and reliability.

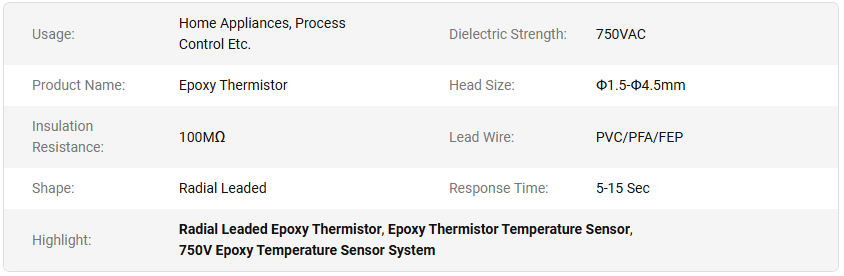

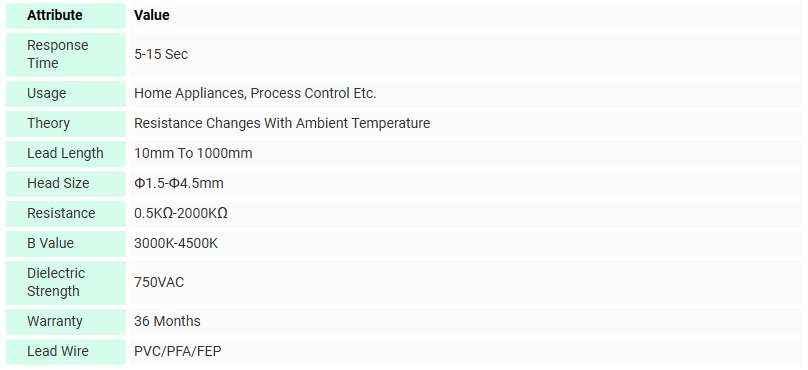

Technical Parameters
Applications
Ideal for home appliances, industrial process control systems, and electronic devices, the epoxy thermistor provides accurate and consistent temperature detection in applications such as heating systems, power electronics, ovens, and HVAC equipment.
Its epoxy encapsulation protects the thermistor from moisture and mechanical stress, making it suitable for use in harsh or fluctuating environments.
Additional Information
Model: MF5A-5
Brand: Hefei Minsing
B Value: 3000K–4500K
Lead Length: 10mm–1000mm
Warranty: 36 months
Packaging: Anti-static bag & box
Supply Capacity: 50 million pieces per year
The Hefei Minsing MF5A-5 Epoxy Thermistor Sensor is a trusted choice for customers seeking fast response, high insulation, and stable temperature sensing performance across both industrial and consumer-grade applications.
-
