Analysis of Working Principle of NTC Temperature Sensor

Whether it is the battery safety of new energy vehicles, the heat dissipation protection of consumer electronics, or the industrial control of energy storage and the temperature adjustment of automated office equipment, NTC temperature sensors play a vital role. It is famous for its "negative temperature coefficient" feature. With its high sensitivity and stability, it has become the core component of temperature control in many fields.

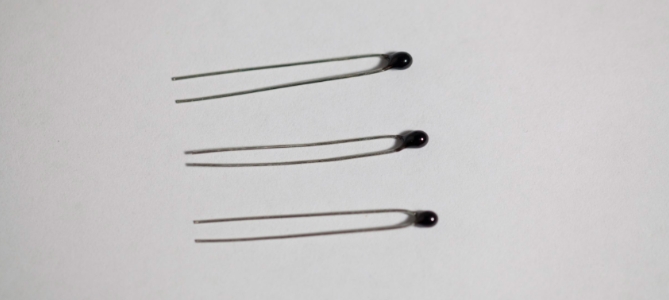

What is an NTC temperature sensor
NTC is the abbreviation of Negative Temperature Coefficient, which means "Negative Temperature Coefficient" in Chinese. As the name suggests, its biggest feature is:

When the temperature rises, the resistance value will; Temperature, the resistance value will increase. This feature allows the NTC temperature sensor to convert temperature changes into resistance changes, which are then converted into recognizable temperature signals through circuits. It is this "temperature-resistance-signal" conversion mechanism that enables it to monitor temperature accurately and in real time.

How NTC Temperature Sensors Work
The core of an NTC temperature sensor is a thermistor. This resistance is made of semiconductor materials, common materials include transition metal oxides such as manganese, cobalt, nickel, and copper. After special processing and high-temperature sintering, they form a polycrystalline semiconductor structure, which has good conductivity and temperature characteristics. The specific principle can be understood as:

When the temperature increases, the number of carriers and the value of resistance in the semiconductor material decrease;
At the temperature, the number of carriers and the value of resistance rise.

This regular change will form a stable "resistance-temperature characteristic curve". In application, as long as the current resistance value of the sensor is measured and compared with the curve, the corresponding temperature can be accurately calculated.

Why NTC Sensors Can Accurately Measure Temperature
High sensitivity: The resistance varies greatly with temperature, and can quickly capture subtle temperature fluctuations.
Simple structure: small size, easy to package in a variety of devices.

Reliable accuracy: Combined with the circuit and algorithm, the temperature measurement error can be controlled between ± 0.1 °C and ± 1 °C.

Strong adaptability: It can work stably under high temperature, low temperature and complexity.

NTC temperature sensor uses the principle of negative temperature coefficient to convert complex temperature changes into concise numbers, providing a reliable temperature control solution for modern industry and daily life. With its high sensitivity, stability and wide applicability, NTC temperature sensors have become an irreplaceable and important role in the field of temperature detection.
